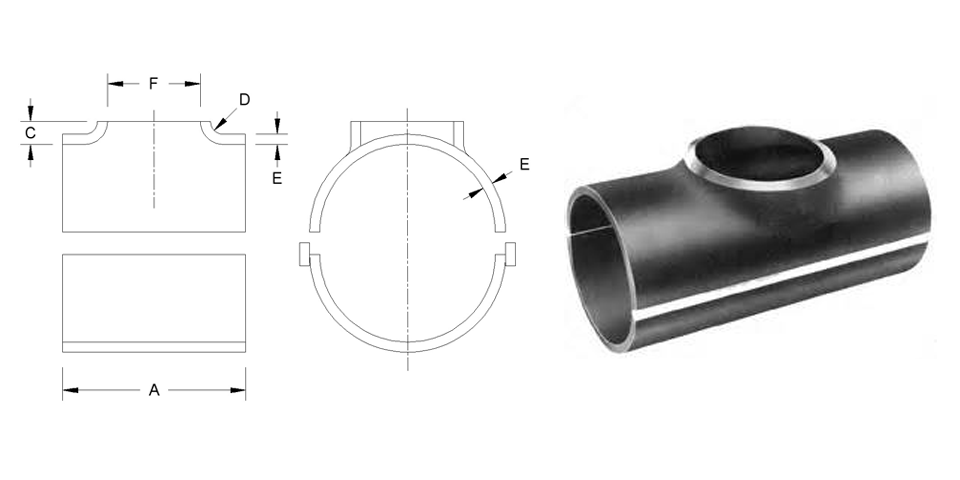

| Pipe Size (NPS) | Branch | A | C | D | E | F | Approx. Weight (lb) |
|---|
| 1/2 |
– |
– |
– |
– |
– |
– |
– |
| 3/4 |
– |
– |
– |
– |
– |
– |
– |
| 1 |
1 thru 30 |
4 |
7/8 |
1/2 |
3/8 |
1 3/8 |
– |
| 1 1/4 |
1 1/4 thru 30 |
5 |
7/8 |
1/2 |
3/8 |
1 3/4 |
– |
| 1 1/2 |
1 1/2 thru 30 |
5 1/2 |
7/8 |
1/2 |
3/8 |
2 |
– |
| 2 |
2 thru 30 |
6 |
1 |
1/2 |
1/2 |
2 7/16 |
– |
| 2 1/2 |
2 1/2 thru 30 |
7 |
1 |
1/2 |
1/2 |
2 15/16 |
– |
| 3 |
3 thru 30 |
8 |
1 |
1/2 |
1/2 |
3 9/16 |
– |
| 3 1/2 |
3 1/2 thru 30 |
8 1/2 |
1 |
1/2 |
1/2 |
4 1/16 |
– |
| 4 |
4 thru 30 |
9 |
1 1/8 |
5/8 |
1/2 |
4 9/16 |
– |
| 5 |
5 thru 30 |
11 1/8 |
1 1/8 |
5/8 |
1/2 |
5 5/8 |
– |
| 6 |
6 thru 30 |
13 1/4 |
1 1/4 |
3/4 |
1/2 |
6 3/4 |
– |
| 8 |
8 thru 30 |
17 1/4 |
1 5/8 |
1 |
5/8 |
8 3/4 |
– |
| 10 |
10 thru 30 |
21 1/2 |
1 5/8 |
1 |
5/8 |
10 7/8 |
– |
| 12 |
12 thru 30 |
25 1/2 |
1 7/8 |
1 1/4 |
5/8 |
12 7/8 |
– |
| 14 |
14 thru 30 |
28 |
2 1/4 |
1 1/2 |
5/8 |
14 1/8 |
– |
| 16 |
16 thru 30 |
32 |
2 1/2 |
1 1/2 |
5/8 |
16 1/8 |
– |
| 18 |
18 thru 30 |
36 |
2 3/4 |
1 1/2 |
5/8 |
18 1/8 |
– |
| 20 |
20 thru 30 |
40 |
3 |
1 1/2 |
5/8 |
20 1/8 |
– |
| 22 |
– |
– |
– |
– |
– |
– |
– |
| 24 |
24 thru 30 |
48 |
3 |
1 1/2 |
5/8 |
24 1/8 |
– |
- Also called Reinforcing Saddle.
