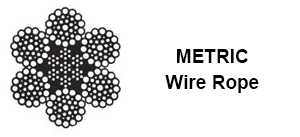

METRIC WIRE ROPES – 6 x 36 wire rope is a more flexible cable wire than 6 x 19 wire rope since it has a higher number of wires per strand. Some of the most common uses are winch lines, choker and boom lines, and works well in marine environments.
6×36 (WS) IWRC, bright, Grade 2160 N/mm2 meets the breaking strength requirements of A.S.T.M. A 1023/A 1023M Wire Rope for General Purposes
* EIPS (Extra Improved Plowed Steel) wire rope has roughly 10% more strength than regular IPS. Independent wire rope core ( IWRC ) provides added strength, reduces the amount of stretch. IWRC wire rope also is resistance to heat and provides extra corrosion resistance over a typical bright wire finish.
| Diameter in mm | Approx. Wt. per Ft. in Lbs. | Breaking Strength in KN* | Breaking Strength in Tons* |
|---|---|---|---|
| 7 | 0.14 | 37.7 | 4.24 |
| 8 | 0.18 | 49.2 | 5.53 |
| 9 | 0.23 | 62.3 | 7 |
| 10 | 0.29 | 76.9 | 8.64 |
| 11 | 0.35 | 93 | 10.45 |
| 12 | 0.41 | 111 | 12.48 |
| 13 | 0.48 | 130 | 14.61 |
| 14 | 0.56 | 151 | 16.97 |
| 15** | 0.64 | 170 | 19.11 |
| 16 | 0.73 | 197 | 22.14 |
| 18 | 0.93 | 249 | 27.99 |
| 20 | 1.15 | 308 | 34.62 |
| 22 | 1.39 | 372 | 41.81 |
| 24 | 1.65 | 443 | 49.8 |
** Not included in A.S.T.M. A 1023/A 1023M
Read Important Warnings and Information
Actual operating load may vary, but should never exceed recommended design factor or 20% of catalog breaking strength.
