Drill Line – Typically used as a drilling cable in the oil, gas, and water drilling industries.
* EIPS (Extra Improved Plowed Steel) wire rope has roughly 10% more strength than regular IPS. Independent wire rope core ( IWRC ) provides added strength, reduces the amount of stretch. IWRC wire rope also is resistance to heat and provides extra corrosion resistance over a typical bright wire finish.
6 x 21 Poly Core Left Lay
| Diameter Inches | Approx. Wt. per Ft. in Lbs. | Breaking Strength in Tons* |
|---|---|---|
| 5/8″ | 0.66 | 16.7 |
| 3/4″ | 0.95 | 23.8 |
| 7/8″ | 1.29 | 32.2 |
| 1″ | 1.68 | 41.8 |
6 x 21 Poly Core Right Lay
| Diameter Inches | Approx. Wt. per Ft. in Lbs. | Breaking Strength in Tons* |
|---|---|---|
| 7/8″ | 1.29 | 32.2 |
6 x 21 IWRC Left Lay
| Diameter Inches | Approx. Wt. per Ft. in Lbs. | Breaking Strength in Tons* |
|---|---|---|
| 5/8″ | 0.72 | 20.6 |
6 x 26 IWRC Right or Left Lay
| Diameter Inches | Approx. Wt. per Ft. in Lbs. | Breaking Strength in Tons* |
|---|---|---|
| 3/4″ | 1.04 | 29.4 |
| 7/8″ | 1.42 | 39.8 |
| 1″ | 1.85 | 51.7 |
3 x 31 IWRC Left Lay
| Diameter Inches | Approx. Wt. per Ft. in Lbs. | Breaking Strength in Tons* |
|---|---|---|
| 3/4″ | 1.04 | 29.4 |
3 x 31 IWRC Right Lay
| Diameter Inches | Approx. Wt. per Ft. in Lbs. | Breaking Strength in Tons* |
|---|---|---|
| 3/4″ | 1.04 | 29.4 |
6 x 31 Poly Core Left Lay
| Diameter Inches | Approx. Wt. per Ft. in Lbs. | Breaking Strength in Tons* |
|---|---|---|
| 3/4″ | 0.95 | 23.8 |
6 x 31 IWRC Left Lay
| Diameter Inches | Approx. Wt. per Ft. in Lbs. | Breaking Strength in Tons* |
|---|---|---|
| 7/8″ | 1.42 | 39.8 |
6 x 31 IWRC Right Lay
| Diameter Inches | Approx. Wt. per Ft. in Lbs. | Breaking Strength in Tons* |
|---|---|---|
| 7/8″ | 1.42 | 39.8 |

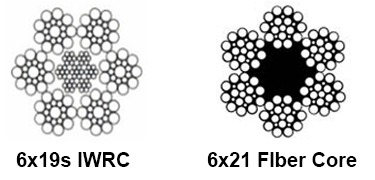

6 x 19S IWRC
| Diameter Inches | Approx. Wt. per Ft. in Lbs. | Breaking Strength in Tons* |
|---|---|---|
| 1.1/8″ | 2.34 | 65 |
| 1.1/4″ | 2.89 | 79.9 |
| 1.3/8″ | 3.5 | 96 |
