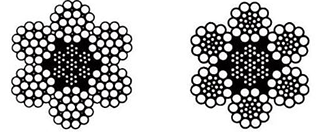

6 x 36 CLASS BRIGHT WIRE ROPE POLY CORE *(EIPS) – 6 x 36 wire rope is a more flexible cable wire rope than 6 x 19 wire rope since it has a higher number of wires per strand. Some of the most common uses are winch lines, choker and hoist ropes, boom lines, and trolley lines. One advantage of the fiber core is that is it very flexible and offers a bright finish which helps with the corrosion better than other galvanized or stainless wire rope.
* EIPS (Extra Improved Plowed Steel) wire rope has roughly 10% more strength than regular IPS. Independent wire rope core ( IWRC ) provides added strength, reduces the amount of stretch. IWRC wire rope also is resistance to heat and provides extra corrosion resistance over a typical bright wire finish.
| Part Number | Diameter in Inches | Approx. Wt. per Ft. in Lbs. | Breaking Strength in Tons* |
|---|---|---|---|
| 135500 | 1/4″ | 0.116 | 3.4 |
| 136000 | 5/16″ | 0.18 | 5.27 |
| 136010 | 3/8″ | 0.26 | 7.55 |
| 136020 | 7/16″ | 0.35 | 10.2 |
| 136030 | 1/2″ | 0.46 | 13.3 |
| 136500 | 9/16″ | 0.59 | 16.8 |
| 136550 | 5/8″ | 0.72 | 20.6 |
| 137500 | 3/4″ | 1.04 | 29.4 |
| 139500 | 7/8″ | 1.42 | 39.8 |
| 139600 | 1″ | 1.85 | 51.7 |
| 139700 | 1-1/8″ | 2.34 | 65 |
| 139800 | 1-1/4″ | 2.89 | 79.9 |
| 139900 | 1-3/8″ | 3.5 | 96 |
| 139950 | 1-1/2″ | 4.16 | 114 |
| 140600 | 1-5/8″ | 4.88 | 132 |
| 141500 | 1-3/4″ | 5.67 | 153 |
| 143000 | 2″ | 7.39 | 198 |
| 144500 | 2-1/4″ | 9.36 | 247 |
| 145500 | 2-1/2″ | 11.6 | 302 |
| 145600 | 2-3/4″ | 14 | 361 |
| 147000 | 3″ | 16.6 | 425 |
