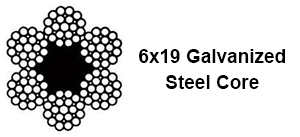

6 x 19 CLASS GALVANIZED WIRE STEEL CORE *(EIPS) – 6 x 19 wire rope is a general purpose steel rope that’s widely used and is commonly used for winch lines, skylines and chokers. This wire rope overs a great combination of both flexibility and wear resistance.
* EIPS (Extra Improved Plowed Steel) wire rope has roughly 10% more strength than regular IPS. Independent wire rope core ( IWRC ) provides added strength, reduces the amount of stretch. IWRC wire rope also is resistance to heat and provides extra corrosion resistance over a typical bright wire finish.
| Part Number | Diameter Inches | Approx. Wt. per Ft. in Lbs. | Breaking Strength in Tons* |
|---|---|---|---|
| 651100 | 1/4″ | 0.12 | 3.4 |
| 651110 | 5/16″ | 0.18 | 5.24 |
| 651120 | 3/8″ | 0.26 | 7.55 |
| 651130 | 7/16″ | 0.35 | 10.2 |
| 651140 | 1/2″ | 0.46 | 13.3 |
| 651150 | 9/16″ | 0.59 | 16.8 |
| 651160 | 5/8″ | 0.72 | 20.6 |
| 651170 | 3/4″ | 1.04 | 29.4 |
| 651180 | 7/8″ | 1.42 | 39.8 |
| 651190 | 1″ | 1.85 | 51.7 |
| 651210 | 1.1/8″ | 2.34 | 65 |
| 651220 | 1.1/4″ | 2.89 | 79.9 |
| 651230 | 1.3/8″ | 3.5 | 96 |
| 651240 | 1.1/2″ | 4.16 | 114 |
| 651250 | 1.5/8″ | 4.88 | 132 |
| 651260 | 1.3/4″ | 5.67 | 153 |
| 651270 | 2″ | 7.39 | 198 |
| 651280 | 2.1/4″ | 9.36 | 247 |
