Flanges

Apr 8, 2021

Socket Weld, ANSI Class 1500 – Coastal Flanges

Nominal Pipe Size (NPS):
Outside Diameter (O):	4.75
Thickness (T):	0.88
Raised Face Diameter (R):	1.38
Length Thru Hub (Y):	1.25
Hub Diameter (X):	1.50
Bore (B1):	Specified by Purchaser
Bore (B2):	0.88
Depth of Socket (D):	0.38
Approximate Weight (lbs):	4
Bolt Circle (C):	3.25
Number of Holes:	4
Diameter of Holes:	0.88

Contact Coastal Flange

11906 FM 529
Jersey Village, TX 77041
Website: www.coastalflange.com

Phone: 800.643.9063
Fax: 713.937.3471
Email: sales@coastalflange.com

All dimensions are in inches.
These flanges will be furnished with a 1/16" raised face unless otherwise specified.
Flat face option available.
Standard Bore will be furnished unless otherwise specified.

by PipeAdmin

Apr 8, 2021

Socket Weld, ANSI Class 900 – Coastal Flanges

Nominal Pipe Size (NPS):
Outside Diameter (O):	4.75
Thickness (T):	0.88
Raised Face Diameter (R):	1.38
Length Thru Hub (Y):	1.25
Hub Diameter (X):	1.50
Bore (B1):	Specified by Purchaser
Bore (B2):	0.88
Depth of Socket (D):	0.38
Approximate Weight (lbs):	4
Bolt Circle (C):	3.25
Number of Holes:	4
Diameter of Holes:	0.88

Contact Coastal Flange

11906 FM 529
Jersey Village, TX 77041
Website: www.coastalflange.com

Phone: 800.643.9063
Fax: 713.937.3471
Email: sales@coastalflange.com

All dimensions are in inches.
These flanges will be furnished with a 1/16" raised face unless otherwise specified.
Flat face option available.
Standard Bore will be furnished unless otherwise specified.

by PipeAdmin

Apr 8, 2021

Socket Weld, ANSI Class 600 – Coastal Flanges

Nominal Pipe Size (NPS):
Outside Diameter (O):	3.75
Thickness (T):	0.56
Raised Face Diameter (R):	1.38
Length Thru Hub (Y):	0.88
Hub Diameter (X):	1.50
Bore (B1):	Specified by Purchaser
Bore (B2):	0.88
Depth of Socket (D):	0.38
Approximate Weight (lbs):	2
Bolt Circle (C):	2.63
Number of Holes:	4
Diameter of Holes:	0.63

Contact Coastal Flange

11906 FM 529
Jersey Village, TX 77041
Website: www.coastalflange.com

Phone: 800.643.9063
Fax: 713.937.3471
Email: sales@coastalflange.com

All dimensions are in inches.
These flanges will be furnished with a 1/16" raised face unless otherwise specified.
Flat face option available.
Standard Bore will be furnished unless otherwise specified.

by PipeAdmin

Apr 8, 2021

Socket Weld, ANSI Class 300 – Coastal Flanges

Nominal Pipe Size (NPS):
Outside Diameter (O):	3.75
Thickness (T):	0.56
Raised Face Diameter (R):	1.38
Length Thru Hub (Y):	0.88
Hub Diameter (X):	1.50
Bore (B1):	0.62
Bore (B2):	0.88
Depth of Socket (D):	0.38
Approximate Weight (lbs):	2
Bolt Circle (C):	2.63
Number of Holes:	4
Diameter of Holes:	0.63

Contact Coastal Flange

11906 FM 529
Jersey Village, TX 77041
Website: www.coastalflange.com

Phone: 800.643.9063
Fax: 713.937.3471
Email: sales@coastalflange.com

All dimensions are in inches.
These flanges will be furnished with a 1/16" raised face unless otherwise specified.
Flat face option available.
Standard Bore will be furnished unless otherwise specified.

by PipeAdmin

Feb 16, 2021

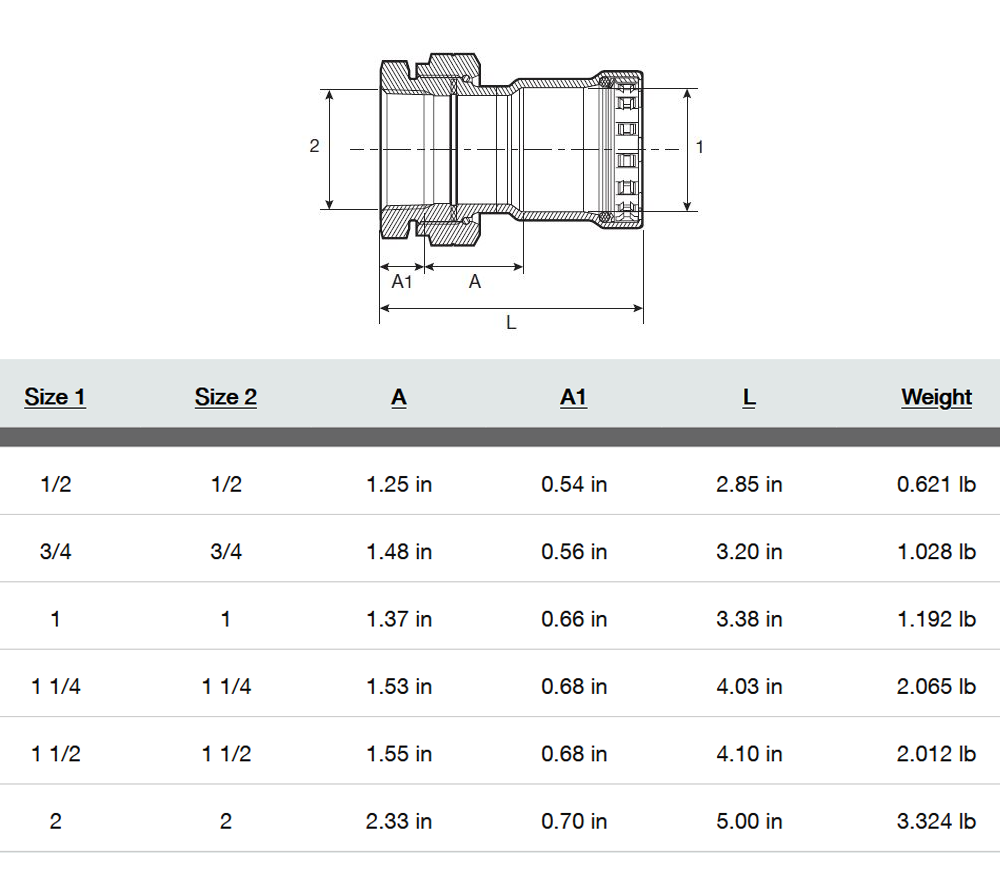

MegaPress Union, P x FPT – Model 4862
